77 3406 0000 20005-0500 | binder

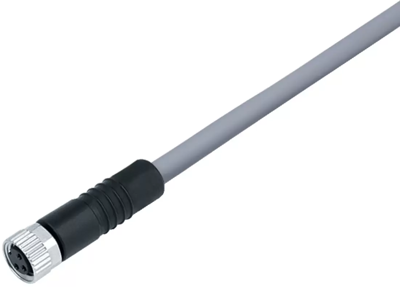

Sensor actuator cable, M8-cable socket, straight to open end, 5 pole, 5 m, PVC, gray, 3 A, 77 3406 0000 20005-0500
Unit Price (€ / pc.)
17.3978 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
17.40 € *
Price list
Quantity
Price per unit*
1 pcs.
17.3978 €
10 pcs.
16.1840 €
50 pcs.
15.0654 €
100 pcs.
14.0063 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor actuator cable, 77 3406 0000 20005-0500, binder

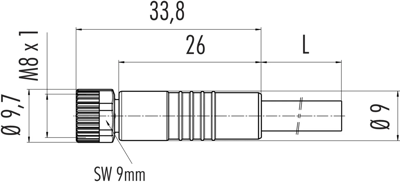

M8 Female cable connector, Contacts: 5, unshielded, moulded on the cable, IP67/IP69K, UL, PVC, grey, 5 x 0.34 mm², 5 m.
Technical specifications
| Connection (1) | M8-cable socket, straight | |
| Connection (2) | open end | |
| Colour | gray | |
| Cable length | 5 m | |
| LED display | No | |
| Material | PVC | |
| max. Voltage | 30 V | |
| Rated current | 3 A | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP67/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
