77 3434 0000 50712-0500 | binder

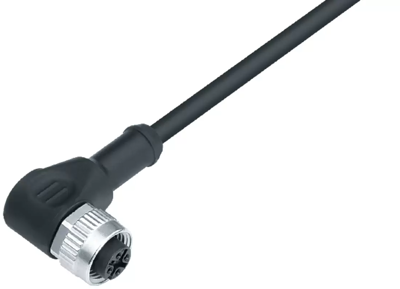

Sensor actuator cable, M12-cable socket, angled to open end, 12 pole, 5 m, PUR, black, 1.5 A, 77 3434 0000 50712-0500
Unit Price (€ / pc.)
40.3648 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
40.36 € *
Price list
Quantity
Price per unit*
1 pcs.
40.3648 €
10 pcs.
38.3418 €
25 pcs.
36.0451 €
50 pcs.
33.5223 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor actuator cable, 77 3434 0000 50712-0500, binder
M12-A Female angled connector, Contacts: 12, unshielded, moulded on the cable, IP69K, UL, PUR, black, 12 x 0.25 mm², 5 m.
Technical specifications
| Connection (1) | M12-cable socket, angled | |
| Connection (2) | open end | |
| Colour | black | |
| Cable length | 5 m | |
| LED display | No | |
| Material | PUR | |
| max. Voltage | 30 V | |
| Rated current | 1.5 A | |
| Pin number | 12 pole | |
| Degree of protection (IP) | IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
