77 3454 0000 50004-0500 | binder

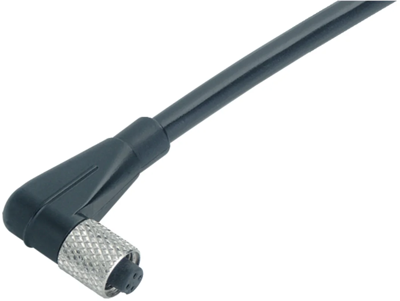

Sensor actuator cable, 77 3454 0000 50004-0500, binder

This female angled connector with screw locking and a pin count of 4 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/80 °C is this unshielded M5 female angled panel mount connector designed for both severe cold and severe heat. und has the UL approval. Due to the qualified rated voltage of 60 V and the rated current of 1.0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-105.
