77 3505 0000 20703-0200 | binder

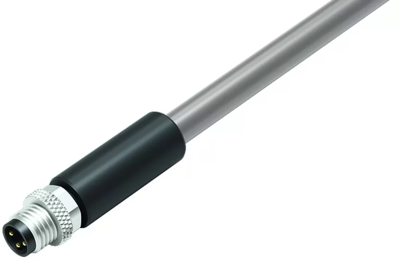

Sensor actuator cable, M8-cable plug, straight to open end, 3 pole, 2 m, PVC, gray, 4 A, 77 3505 0000 20703-0200
Unit Price (€ / pc.)
23.4430 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
23.44 € *
Price list
Quantity
Price per unit*
1 pcs.
23.4430 €
10 pcs.
22.0269 €
50 pcs.
20.7060 €
100 pcs.
19.4684 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor actuator cable, 77 3505 0000 20703-0200, binder

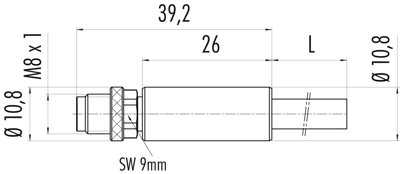

M8 Male cable connector, Contacts: 3, shielded, moulded on the cable, IP67, UL, PVC, grey, 3 x 0.34 mm², 2 m.
Technical specifications
| Anschluss (1) | M8-Kabelstecker, gerade | |
| Anschluss (2) | offenes Ende | |
| Polzahl | 3-polig | |
| Kabellänge | 2 m | |
| Farbe | grau | |
| Material | PVC | |
| Schutzart (IP) | IP67 | |
| LED-Anzeige | No | |
| max. Spannung | 60 V | |
| Nennstrom | 4 A |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
