77 3505 0000 20706-0500 | binder

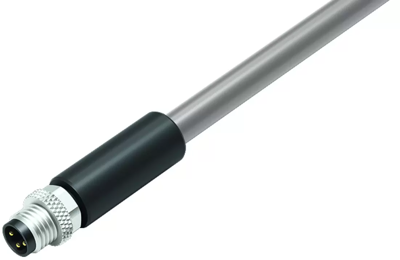

Sensor actuator cable, M8-cable plug, straight to open end, 6 pole, 5 m, PVC, gray, 1.5 A, 77 3505 0000 20706-0500
Unit Price (€ / pc.)
36.8662 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
36.87 € *
Price list
Quantity
Price per unit*
1 pcs.
36.8662 €
10 pcs.
34.6528 €
25 pcs.
32.2252 €
50 pcs.
29.9761 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor actuator cable, 77 3505 0000 20706-0500, binder
M8 Male cable connector, Contacts: 6, shielded, moulded on the cable, IP67, UL, PVC, grey, 6 x 0.25 mm², 5 m.
Technical specifications
| Connection (1) | M8-cable plug, straight | |
| Connection (2) | open end | |
| Colour | gray | |
| Cable length | 5 m | |
| LED display | No | |
| Material | PVC | |
| max. Voltage | 30 V | |
| Rated current | 1.5 A | |
| Pin number | 6 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
