77 3508 0000 50003-0500 | binder

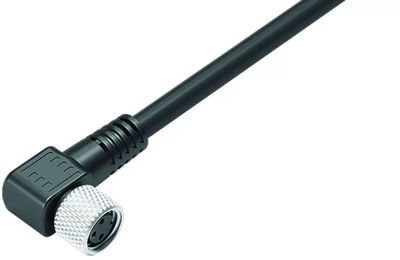

Sensor actuator cable, M8-cable socket, angled to open end, 3 pole, 5 m, PUR, black, 4 A, 77 3508 0000 50003-0500
Unit Price (€ / pc.)
27.7508 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
27.75 € *
Price list
Quantity
Price per unit*
1 pcs.
27.7508 €
10 pcs.
26.0848 €
25 pcs.
24.5140 €
50 pcs.
23.0503 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor actuator cable, 77 3508 0000 50003-0500, binder

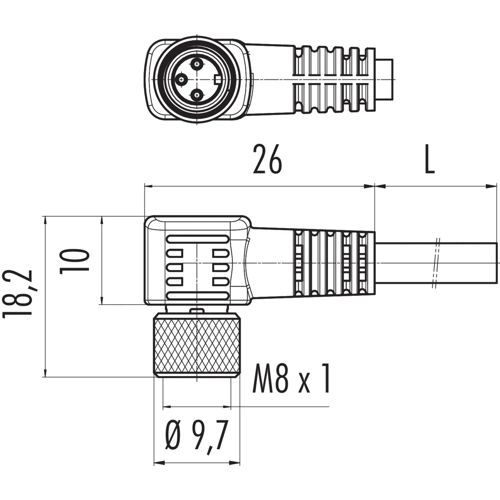

M8 Female angled connector, Contacts: 3, shielded, moulded on the cable, IP67, UL, PUR, black, 3 x 0.34 mm², 5 m.
Technical specifications
| Connection (1) | M8-Kabeldose, abgewinkelt | |
| Connection (2) | offenes Ende | |
| Pin number | 3-polig | |
| Cable length | 5 m | |
| Colour | schwarz | |
| Material | PUR | |
| Degree of protection (IP) | IP67 | |
| LED display | No | |
| max. Voltage | 60 V | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
