77 9853 4330 60702-0200 | binder

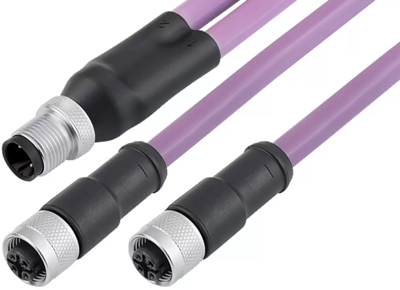

Sensor actuator cable, M12-cable plug, straight to 2 x M12 cable socket, straight, 2 pole, 2 m, PUR, purple, 4 A, 77 9853 4330 60702-0200
Unit Price (€ / pc.)
65.8903 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
65.89 € *
Price list
Quantity
Price per unit*
1 pcs.
65.8903 €
5 pcs.
63.2604 €
10 pcs.
60.7257 €
25 pcs.
57.6793 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor actuator cable, 77 9853 4330 60702-0200, binder
Connecting Cables Connecting cable, Contacts: 2, shielded, moulded on the cable, IP65, Profibus, PUR, purple, 2 x 0.25 mm², 2 m.
Technical specifications
| Anschluss (1) | M12-Kabelstecker, gerade | |
| Anschluss (2) | 2 x M12-Kabeldose, gerade | |
| Farbe | violett | |
| Kabellänge | 2 m | |
| LED-Anzeige | No | |
| Material | PUR | |
| max. Spannung | 60 V | |
| Nennstrom | 4 A | |
| Polzahl | 2-polig | |
| Schutzart (IP) | IP65 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
