79 3110 32 04 | binder

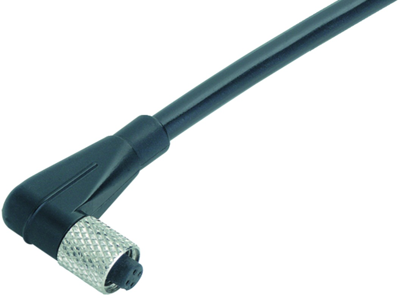

Sensor actuator cable, M5-cable socket, angled to open end, 4 pole, 2 m, PUR, black, 1 A, 79 3110 32 04
Single-ended cord sets for sensors, M 5, type Binder 707.
With screw lock and molded cable; Male contact: copper zinc. Female contact: copper tin. Contact finish: gold-plated. Cable housing, male and female contact block: PUR. Flange body: PA 66. Flanged housing: copper zinc, nickel-plated. Stranded wire: PVC. Cable outer insulation: PUR. Rated voltage: 125 V. Rated current: 2.0 A. Test surge voltage: 1750 V. Insulation resistance: 10 Gohm. Degree of protection: IP 67. Insertion/removal cycles: 500. Operating temperatures: (cable moving) - 5.0 to +80 °C, (cable static) - 25 to +80 °C.
With molded female cable connector, type 707.
Technical attributes (type, number of positions, cable structure, cable material, cable length): 79-3110-32-04, 4-position, 4 x 0.25 mm², PUR, 2.0 m
| Anschluss (1) | M5-Kabeldose, abgewinkelt | |
| Anschluss (2) | offenes Ende | |
| Farbe | schwarz | |
| Kabellänge | 2 m | |
| LED-Anzeige | No | |
| Material | PUR | |
| max. Spannung | 60 V | |
| Nennstrom | 1 A | |
| Polzahl | 4-polig | |
| Schutzart (IP) | IP67 |
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
