09 0642 100 05 | binder

Panel socket, M12, 4 pole + FE, THR, screw locking, straight, 09 0642 100 05

Order No.: 70P3117
EAN: 4099891677961
MPN:
09 0642 100 05
Series: 823
binder

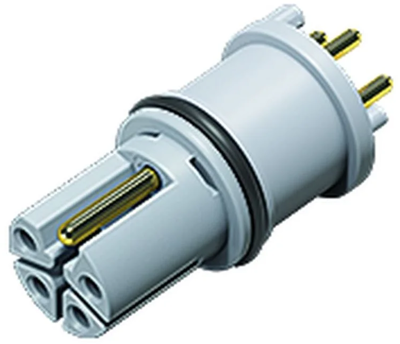

09 0642 100 05 binder Sensor-Actuator Connectors Image 1

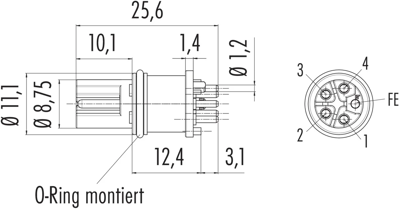

09 0642 100 05 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
13.7683 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
13.77 € *
Price list
Quantity
Price per unit*
1 pcs.
13.7683 €
10 pcs.
12.8163 €
50 pcs.
11.9119 €
100 pcs.
10.7219 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female receptacle, 09 0642 100 05, binder

M12-L Female receptacle, Contacts: 4+FE, unshielded, THR, IP68.

Technical specifications
Version panel socket
Additional parts equipped
Thread size M12
Coding L
Contact connection THR
contact surface gold-plated
Orientation straight
Pin number 4 pole + FE
Degree of protection (IP) IP68
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
