09 3105 81 03 | binder

Panel plug, M5, 3 pole, THT, screw locking, straight, 09 3105 81 03

Order No.: 67F5614
EAN: 4099889702941
MPN:
09 3105 81 03
Series: 707
binder

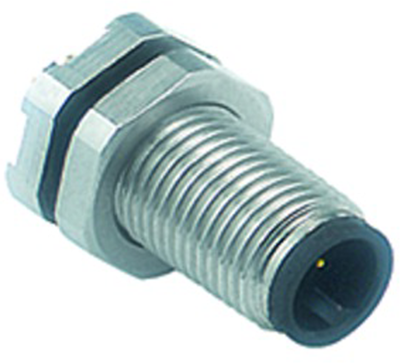

09 3105 81 03 binder Sensor-Actuator Connectors Image 1

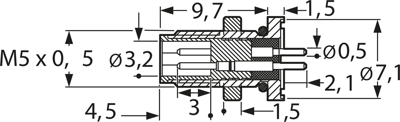

09 3105 81 03 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
9.2344 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.23 € *
Price list
Quantity
Price per unit*
1 pcs.
9.2344 €
10 pcs.
8.3062 €
50 pcs.
7.6398 €
100 pcs.
6.7354 €
*incl. VAT plus shipping costs
**Subject to prior sale

Single-ended cord set for sensors, M 5, type Binder 707.

Flanged cable plug connector with screw lock; Male contact: copper zinc. Female contact: copper tin. Contact finish: gold-plated. Cable housing. Flange body: PA 66. Flange housing: nickel-plated brass. Rated voltage: 125 V. Rated current: 1.0 A with 0.14 mm², 2.0 A with 0.25 mm². Test surge voltage: 1750 V. Insulation resistance: 10 Gohm. Degree of protection: IP 67. Insertion/removal cycles: 500. Operating temperatures: (cable moving) - 5.0 to +80 °C, (cable static) - 15 to +80 °C with 0.14 mm², - 25 to +80 °C with 0.25 mm².

Male panel mount connector with dip soldering contacts, type 707.

Technical attributes (type, number of poles): 09-3105-81-03, 3-pole

Technical specifications
Version panel plug
Additional parts equipped
Thread size M5
Contact connection THT
contact surface gold-plated
Assembly panel mounting
Orientation straight
Pin number 3 pole
Degree of protection (IP) IP67
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
