86 0131 0000 00008 | binder

Panel plug, M12, 8 pole, THT, screw locking, straight, 86 0131 0000 00008

Order No.: 70P2157
EAN: 4099891677503
MPN:
86 0131 0000 00008
Series: 763
binder

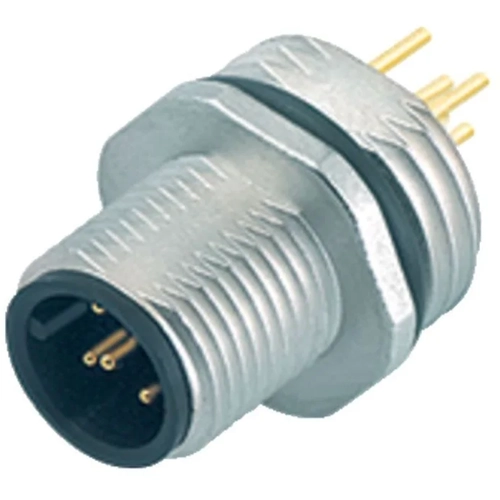

86 0131 0000 00008 binder Sensor-Actuator Connectors Image 1
86 0131 0000 00008 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
15.1844 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
15.18 € *
Price list
Quantity
Price per unit*
1 pcs.
15.1844 €
10 pcs.
14.1253 €
50 pcs.
13.1257 €
100 pcs.
12.2094 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male panel mount connector, 86 0131 0000 00008, binder

M12-A Male panel mount connector, Contacts: 8, unshielded, THT, IP68, UL, PG 9.

Technical specifications
Version panel plug
Additional parts equipped
Thread size M12
Coding A
Contact connection THT
contact surface gold-plated
Assembly panel mounting
Orientation straight
Pin number 8 pole
Degree of protection (IP) IP68
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
