86 0432 0003 00005 | binder

Panel socket, M12, 5 pole, screw connection, screw locking, straight, 86 0432 0003 00005

Order No.: 70P2981
EAN: 4099891677800
MPN:
86 0432 0003 00005
Series: 763
binder

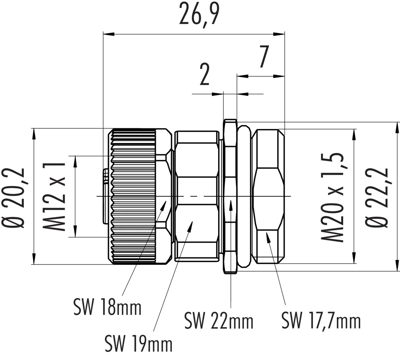

86 0432 0003 00005 binder Sensor-Actuator Connectors Image 1

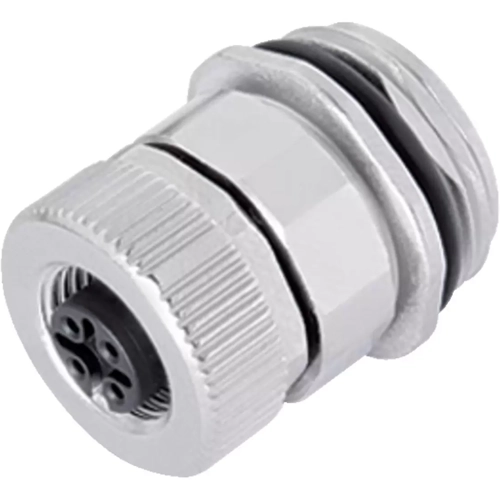

86 0432 0003 00005 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
13.9111 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
13.91 € *
Price list
Quantity
Price per unit*
1 pcs.
13.9111 €
10 pcs.
12.9353 €
50 pcs.
12.0309 €
100 pcs.
11.1860 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female panel mount connector, 86 0432 0003 00005, binder

M12-A Female panel mount connector, Contacts: 5, unshielded, screw clamp, IP67, UL, VDE, M20x1.5.

Technical specifications
Version panel socket
Additional parts equipped
Thread size M12
Coding A
Contact connection screw connection
contact surface gold-plated
Assembly panel mounting
Orientation straight
Pin number 5 pole
Degree of protection (IP) IP67
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
