86 0432 0003 00008 | binder

Panel socket, M12, 8 pole, screw connection, screw locking, straight, 86 0432 0003 00008

Order No.: 70P2982
EAN: 4099891677817
MPN:
86 0432 0003 00008
Series: 763
binder
86 0432 0003 00008 binder Sensor-Actuator Connectors Image 1
86 0432 0003 00008 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
0.2094 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.21 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2094 €
20 pcs.
0.1892 €
50 pcs.
0.1654 €
100 pcs.
0.1404 €
*incl. VAT plus shipping costs
**Subject to prior sale

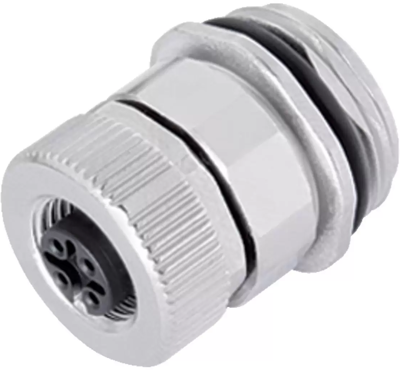

Female panel mount connector, 86 0432 0003 00008, binder

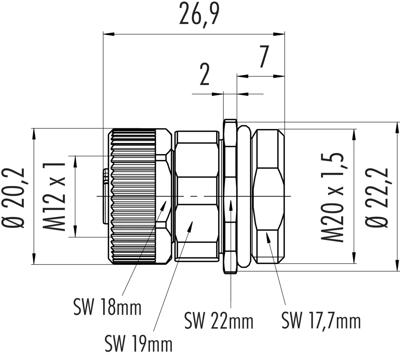

M12-A Female panel mount connector, Contacts: 8, unshielded, screw clamp, IP68, UL, M20x1.5.

Technical specifications
Version panel socket
Additional parts equipped
Thread size M12
Coding A
Contact connection screw connection
contact surface gold-plated
Assembly panel mounting
Orientation straight
Pin number 8 pole
Degree of protection (IP) IP68
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
