86 0531 1100 00012 | binder
Panel plug, M12, 12 pole, THT, screw locking, straight, 86 0531 1100 00012
Unit Price (€ / pc.)
19.7778 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
19.78 € *
Price list
Quantity
Price per unit*
1 pcs.
19.7778 €
10 pcs.
18.5997 €
50 pcs.
17.4930 €
100 pcs.
16.4339 €
*incl. VAT plus shipping costs
**Subject to prior sale

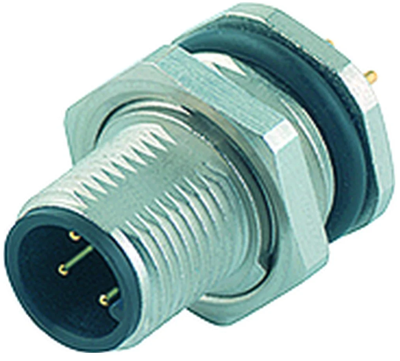

Male panel mount connector, 86 0531 1100 00012, binder
M12-A Male panel mount connector, Contacts: 12, unshielded, THT, IP68, UL, PG 9, front fastened.
Technical specifications
| Version | panel plug | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Coding | A | |
| Contact connection | THT | |
| contact surface | gold-plated | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Pin number | 12 pole | |
| Degree of protection (IP) | IP68 | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
