86 0532 1002 00008 | binder

Panel socket, M12, 8 pole, solder connection, screw locking, straight, 86 0532 1002 00008

Order No.: 70P1800
EAN: 4099891676353
MPN:
86 0532 1002 00008
Series: 763

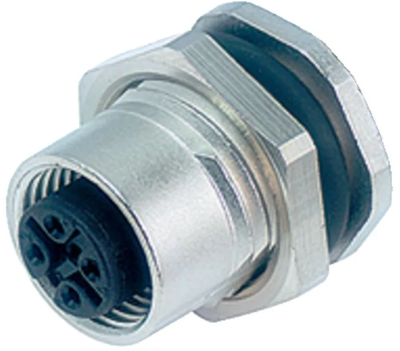

86 0532 1002 00008 binder Sensor-Actuator Connectors Image 1
86 0532 1002 00008 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
15.6485 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
15.65 € *
Price list
Quantity
Price per unit*
1 pcs.
15.6485 €
10 pcs.
14.5537 €
50 pcs.
13.5303 €
100 pcs.
12.5783 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female panel mount connector, 86 0532 1002 00008, binder

M12-A Female panel mount connector, Contacts: 8, unshielded, solder, IP68, UL, PG 9, front fastened.

Technical specifications
Ausführung Einbaubuchse
Bestückung bestückt
Gewindegröße M12
Kodierung A
Kontaktanschluss Lötanschluss
Kontaktoberfläche vergoldet
Montage Panelmontage
Orientierung gerade
Polzahl 8-polig
Schutzart (IP) IP68
Verriegelung Schraubverriegelung
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
