86 0534 1000 00005 | binder
Panel socket, M12, 5 pole, THT, screw locking, straight, 86 0534 1000 00005
Unit Price (€ / pc.)
13.4827 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
13.48 € *
Price list
Quantity
Price per unit*
1 pcs.
13.4827 €
10 pcs.
12.5426 €
50 pcs.
11.6739 €
100 pcs.
10.8528 €
*incl. VAT plus shipping costs
**Subject to prior sale

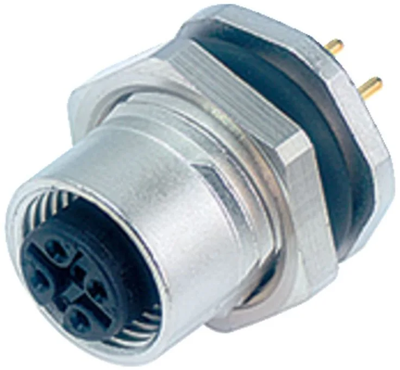

Female panel mount connector, 86 0534 1000 00005, binder
M12-B Female panel mount connector, Contacts: 5, unshielded, THT, IP68, UL, PG 9, front fastened.
Technical specifications
| Ausführung | Einbaubuchse | |
| Bestückung | bestückt | |
| Gewindegröße | M12 | |
| Kodierung | B | |
| Kontaktanschluss | THT | |
| Kontaktoberfläche | vergoldet | |
| Montage | Panelmontage | |
| Orientierung | gerade | |
| Polzahl | 5-polig | |
| Schutzart (IP) | IP68 | |
| Verriegelung | Schraubverriegelung |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
