86 0631 1000 00004 | binder

Panel plug, M12, 4 pole, THT, screw locking, straight, 86 0631 1000 00004

Order No.: 70P2158
EAN: 4099891677510
MPN:
86 0631 1000 00004
Series: 763
binder
86 0631 1000 00004 binder Sensor-Actuator Connectors Image 1
86 0631 1000 00004 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.2459 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
10.25 € *
Price list
Quantity
Price per unit*
1 pcs.
10.2459 €
10 pcs.
9.5200 €
50 pcs.
8.8536 €
100 pcs.
7.9730 €
*incl. VAT plus shipping costs
**Subject to prior sale

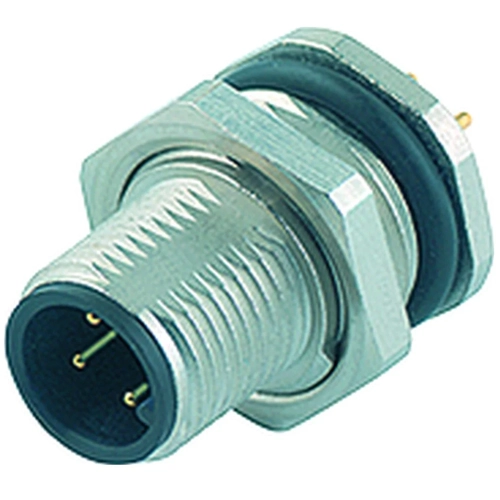

Male panel mount connector, 86 0631 1000 00004, binder

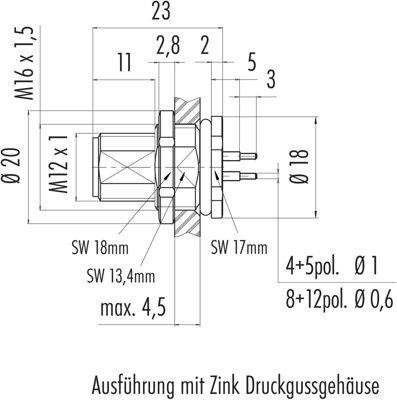

M12-A Male panel mount connector, Contacts: 4, unshielded, THT, IP68, UL, M16x1.5, front fastened.

Technical specifications
Version panel plug
Additional parts equipped
Thread size M12
Coding A
Contact connection THT
contact surface gold-plated
Assembly panel mounting
Orientation straight
Pin number 4 pole
Degree of protection (IP) IP68
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
