86 0632 1002 00008 | binder
Panel socket, M12, 8 pole, solder connection, screw locking, straight, 86 0632 1002 00008
Unit Price (€ / pc.)
15.6485 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
15.65 € *
Price list
Quantity
Price per unit*
1 pcs.
15.6485 €
10 pcs.
14.5537 €
50 pcs.
13.5303 €
100 pcs.
12.5783 €
*incl. VAT plus shipping costs
**Subject to prior sale

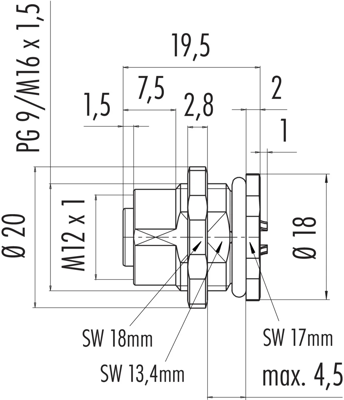

Female panel mount connector, 86 0632 1002 00008, binder
M12-A Female panel mount connector, Contacts: 8, unshielded, solder, IP68, UL, M16x1.5, front fastened.
Technical specifications
| Version | panel socket | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Coding | A | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP68 | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
