86 4233 1002 00004 | binder
Panel plug, M12, 4 pole, solder connection, screw locking, straight, 86 4233 1002 00004
Unit Price (€ / pc.)
10.0079 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
10.01 € *
Price list
Quantity
Price per unit*
1 pcs.
10.0079 €
10 pcs.
9.3058 €
50 pcs.
8.6513 €
100 pcs.
7.7826 €
*incl. VAT plus shipping costs
**Subject to prior sale

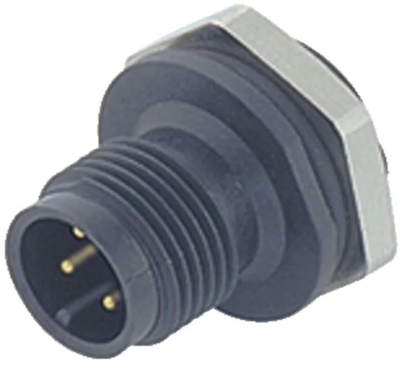

Male panel mount connector, 86 4233 1002 00004, binder
M12-B Male panel mount connector, Contacts: 4, unshielded, solder, IP67, UL, PG 9.
Technical specifications
| Version | panel plug | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Coding | B | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
