86 4832 3002 00004 | binder

Panel socket, M12, 4 pole, solder connection, screw locking, straight, 86 4832 3002 00004

Order No.: 70P1834
EAN: 4099891676698
MPN:
86 4832 3002 00004
Series: 763

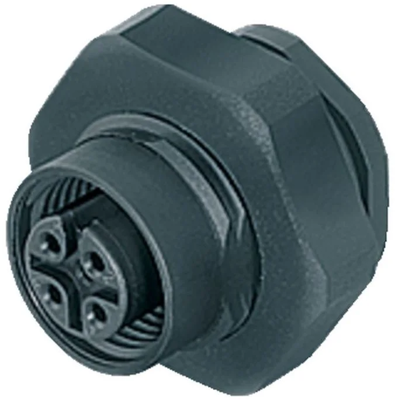

86 4832 3002 00004 binder Sensor-Actuator Connectors Image 1
86 4832 3002 00004 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.0448 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
7.04 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0448 €
10 pcs.
6.3308 €
50 pcs.
5.5811 €
100 pcs.
5.0218 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female panel mount connector, 86 4832 3002 00004, binder

M12-A Female panel mount connector, Contacts: 4, unshielded, solder, IP67, UL, PG 9, front fastened.

Technical specifications
Ausführung Einbaubuchse
Bestückung bestückt
Gewindegröße M12
Kodierung A
Kontaktanschluss Lötanschluss
Kontaktoberfläche vergoldet
Montage Panelmontage
Orientierung gerade
Polzahl 4-polig
Schutzart (IP) IP67
Verriegelung Schraubverriegelung
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
