86 4832 3002 00005 | binder

Panel socket, M12, 5 pole, solder connection, screw locking, straight, 86 4832 3002 00005

Order No.: 70P1835
EAN: 4099891676704
MPN:
86 4832 3002 00005
Series: 763

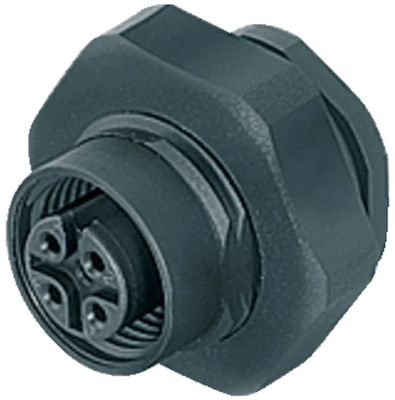

86 4832 3002 00005 binder Sensor-Actuator Connectors Image 1

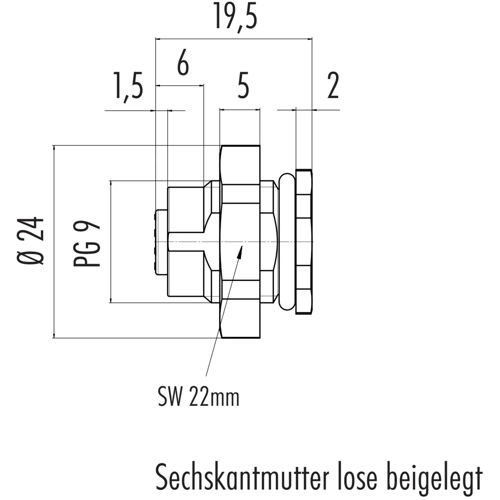

86 4832 3002 00005 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.8897 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
7.89 € *
Price list
Quantity
Price per unit*
1 pcs.
7.8897 €
10 pcs.
7.0924 €
50 pcs.
6.2475 €
100 pcs.
5.6287 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female panel mount connector, 86 4832 3002 00005, binder

M12-A Female panel mount connector, Contacts: 5, unshielded, solder, IP67, UL, PG 9, front fastened.

Technical specifications
Version Einbaubuchse
Pin number 5-polig
Thread size M12
Coding A
Type of locking Schraubverriegelung
Orientation gerade
Contact connection Lötanschluss
contact surface vergoldet
Additional parts bestückt
Assembly Panelmontage
Degree of protection (IP) IP67
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
