99 0436 186 05 | binder
Jack, M12, 5 pole, screw connection, screw locking, straight, 99 0436 186 05
Unit Price (€ / pc.)
16.7433 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
16.74 € *
Price list
Quantity
Price per unit*
1 pcs.
16.7433 €
10 pcs.
15.5652 €
50 pcs.
14.4704 €
100 pcs.
13.4589 €
*incl. VAT plus shipping costs
**Subject to prior sale

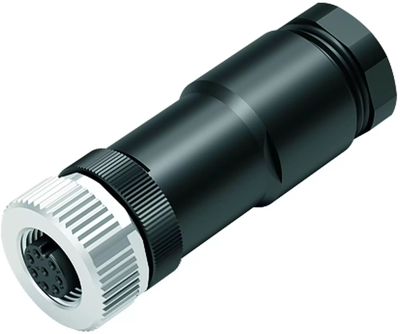

Female cable duo connector, 99 0436 186 05, binder
M12-A Female cable duo connector, Contacts: 5, 2 x 2: 2.1-3.0 mm / Ø 4.0-5.0 mm, unshielded, screw clamp, IP67, UL.
Technical specifications
| Ausführung | Kupplung | |
| Bestückung | bestückt | |
| Gewindegröße | M12 | |
| Kodierung | A | |
| Kontaktanschluss | Schraubanschluss | |
| Kontaktoberfläche | CuSnZn | |
| Montage | Kabelmontage | |
| Orientierung | gerade | |
| Polzahl | 5-polig | |
| Schutzart (IP) | IP67 | |
| Verriegelung | Schraubverriegelung |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
