99 0436 287 05 | binder
Jack, M12, 5 pole, screw connection, screw locking, straight, 99 0436 287 05
Unit Price (€ / pc.)
18.8496 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
18.85 € *
Price list
Quantity
Price per unit*
1 pcs.
18.8496 €
10 pcs.
17.7191 €
50 pcs.
16.6481 €
100 pcs.
15.6485 €
*incl. VAT plus shipping costs
**Subject to prior sale

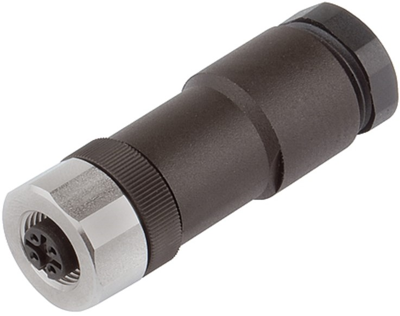

Sensor-actuator connector, 99-0436-287-05, BINDER
M12-A Duo female cable connector, Contacts: 5, 2 x 2: 1.0-3.0 mm / Ø 4.0-5.0 mm, unshielded, screw clamp, IP67, UL.
Features
- Contact material: CuZn
- Degree of protection: IP67
- Pollution degree: 3
- Overvoltage category: II
Technical specifications
| Version | jack | |
| Thread size | M12 | |
| Coding | A | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | screw locking |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
