99 0524 24 04 | binder

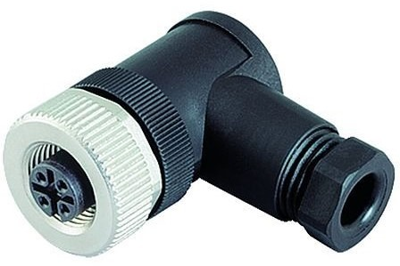

Jack, M12, 4 pole, clamp connection, screw locking, angled, 99 0524 24 04

Order No.: 66P3444
EAN: 4099889700848
MPN:
99 0524 24 04
Series: 713
binder
99 0524 24 04 binder Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
13.8754 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
13.88 € *
Price list
Quantity
Price per unit*
1 pcs.
13.8754 €
10 pcs.
12.8996 €
50 pcs.
11.9952 €
100 pcs.
11.1503 €
*incl. VAT plus shipping costs
**Subject to prior sale

Sensor-actuator connector, 99-0524-24-04, BINDER

M12-A Female angled connector, Contacts: 4, 4.0-6.0 mm, unshielded, wire clamp, IP67.

Features

  • Contact material: CuSn (Bronze)
  • Degree of protection: IP67
  • Pollution degree: 3
  • Overvoltage category: II
Technical specifications
Version jack
Thread size M12
Coding A
Contact connection clamp connection
contact surface gold-plated
Assembly cable assembly
Orientation angled
Pin number 4 pole
Degree of protection (IP) IP67
Type of locking screw locking
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
