99 0529 14 04 | binder

Plug, M12, 4 pole, crimp connection, screw locking, straight, 99 0529 14 04

Order No.: 70P1042
EAN: 4099891674984
MPN:
99 0529 14 04
Series: 713

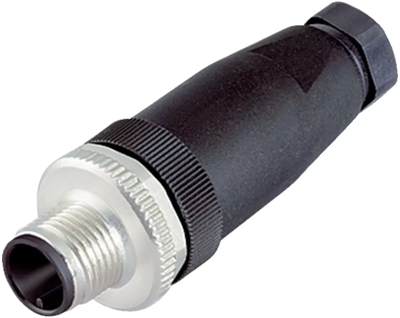

99 0529 14 04 binder Sensor-Actuator Connectors Image 1

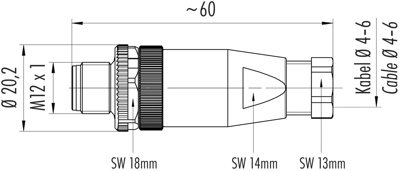

99 0529 14 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.2459 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
10.25 € *
Price list
Quantity
Price per unit*
1 pcs.
10.2459 €
10 pcs.
9.5200 €
50 pcs.
8.8536 €
100 pcs.
7.9730 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male cable connector, 99 0529 14 04, binder

M12-A Male cable connector, Contacts: 4, 4.0-6.0 mm, unshielded, crimping, IP67, UL.

Technical specifications
Version Stecker
Pin number 4-polig
Thread size M12
Coding A
Type of locking Schraubverriegelung
Orientation gerade
Contact connection Crimpanschluss
contact surface vergoldet
Additional parts unbestückt
Assembly Kabelmontage
Degree of protection (IP) IP67
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
