99 0537 52 05 | binder
Angle plug, M12, 5 pole, clamp connection, screw locking, angled, 99 0537 52 05
Unit Price (€ / pc.)
18.2784 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
18.28 € *
Price list
Quantity
Price per unit*
1 pcs.
18.2784 €
10 pcs.
17.1836 €
50 pcs.
16.1483 €
100 pcs.
15.1963 €
*incl. VAT plus shipping costs
**Subject to prior sale

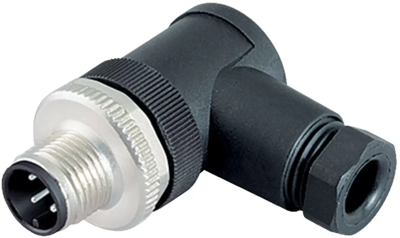

Male angled connector, 99 0537 52 05, binder
M12-A Male angled connector, Contacts: 5, 6.0-8.0 mm, unshielded, wire clamp, IP67.
Technical specifications
| Version | angle plug | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Coding | A | |
| Contact connection | clamp connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
