99 0639 58 05 | binder
Angle plug, M12, 4 pole + FE, screw connection, screw locking, angled, 99 0639 58 05
Unit Price (€ / pc.)
24.9186 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
24.92 € *
Price list
Quantity
Price per unit*
1 pcs.
24.9186 €
10 pcs.
23.4192 €
25 pcs.
22.0150 €
50 pcs.
20.6941 €
*incl. VAT plus shipping costs
**Subject to prior sale

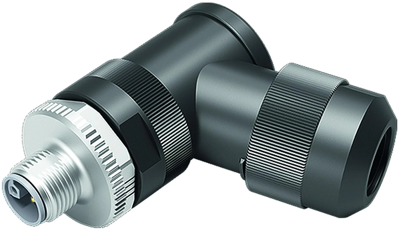

Male angled connector, 99 0639 58 05, binder
M12-L Male angled connector, Contacts: 4+FE, 8.0-13.0 mm, unshielded, screw clamp, IP67, UL, M12x1.0, for the power supply.
Technical specifications
| Version | angle plug | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Coding | L | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 4 pole + FE | |
| Degree of protection (IP) | IP67 | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
