99 0689 58 04 | binder
Angle plug, M12, 3 pole + PE, screw connection, screw locking, angled, 99 0689 58 04
Unit Price (€ / pc.)
17.0051 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
17.01 € *
Price list
Quantity
Price per unit*
1 pcs.
17.0051 €
10 pcs.
15.8151 €
50 pcs.
14.7084 €
100 pcs.
13.6731 €
*incl. VAT plus shipping costs
**Subject to prior sale

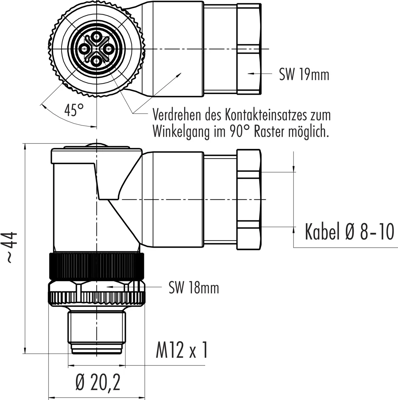

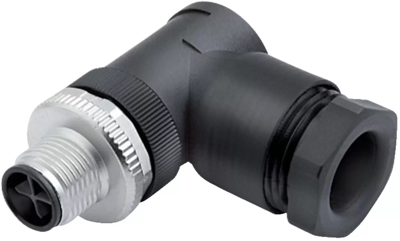

Male angled connector, 99 0689 58 04, binder
M12-S Male angled connector, Contacts: 3+PE, 8.0-10.0 mm, unshielded, screw clamp, IP67, UL, VDE.
Technical specifications
| Version | angle plug | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Coding | S | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 3 pole + PE | |
| Degree of protection (IP) | IP67 | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
