99 0693 500 04 | binder
Panel plug, M12, 3 pole + PE, screw connection, screw locking, straight, 99 0693 500 04
Unit Price (€ / pc.)
15.7080 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
15.71 € *
Price list
Quantity
Price per unit*
1 pcs.
15.7080 €
10 pcs.
14.6132 €
50 pcs.
13.5898 €
100 pcs.
12.6497 €
*incl. VAT plus shipping costs
**Subject to prior sale

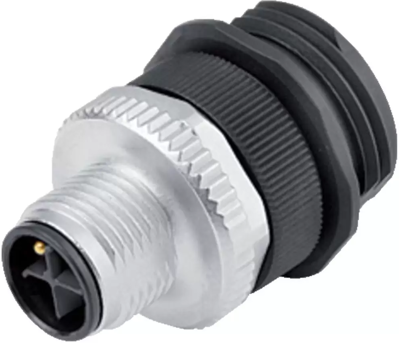

Male panel mount connector, 99 0693 500 04, binder
M12-S Male panel mount connector, Contacts: 3+PE, unshielded, screw clamp, IP68, UL, VDE, M20x1.5, for the power supply.
Technical specifications
| Version | panel plug | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Coding | S | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Pin number | 3 pole + PE | |
| Degree of protection (IP) | IP68 | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
