99 0699 37 05 | binder

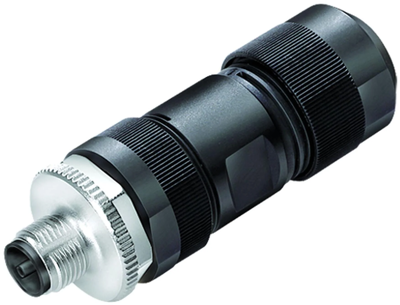

Plug, M12, 4 pole + PE, screw connection, screw locking, straight, 99 0699 37 05
Unit Price (€ / pc.)
36.1760 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
36.18 € *
Price list
Quantity
Price per unit*
1 pcs.
36.1760 €
10 pcs.
34.0102 €
25 pcs.
31.6302 €
50 pcs.
29.4049 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male cable connector, 99 0699 37 05, binder
M12-K Male cable connector, Contacts: 4+PE, 8.0-13.0 mm, unshielded, screw clamp, IP67, UL 2237 in preparation, with PE connection.
Technical specifications
| Version | plug | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Coding | K | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 4 pole + PE | |
| Degree of protection (IP) | IP67 | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
