99 0700 58 05 | binder

Angle coupling, M12, 4 pole + PE, screw connection, screw locking, angled, 99 0700 58 05

Order No.: 70P3145
EAN: 4099891678128
MPN:
99 0700 58 05
Series: 824

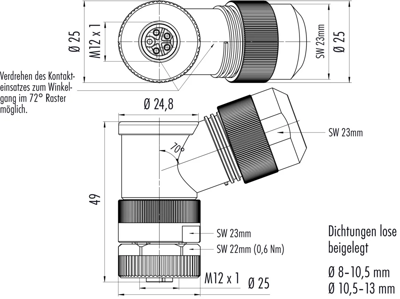

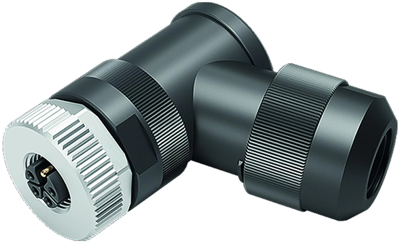

99 0700 58 05 binder Sensor-Actuator Connectors Image 1

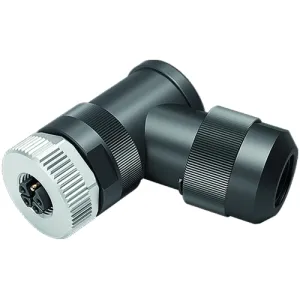

99 0700 58 05 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
25.5612 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
25.56 € *
Price list
Quantity
Price per unit*
1 pcs.
25.5612 €
10 pcs.
24.0261 €
25 pcs.
22.5862 €
50 pcs.
21.2296 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female angled connector, 99 0700 58 05, binder

M12-K Female angled connector, Contacts: 4+PE, 8.0-13.0 mm, unshielded, screw clamp, IP67, UL.

Technical specifications
Version Winkelkupplung
Pin number 4-polig + PE
Thread size M12
Coding K
Type of locking Schraubverriegelung
Orientation abgewinkelt
Contact connection Schraubanschluss
contact surface vergoldet
Additional parts bestückt
Assembly Kabelmontage
Degree of protection (IP) IP67
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
