99 1430 810 04 | binder
Jack, M12, 4 pole, screw connection, screw locking, straight, 99 1430 810 04
Unit Price (€ / pc.)
27.3462 € *
Available: 2 pcs.
Leadtime: On Request **
Total Price:
27.35 € *
Price list
Quantity
Price per unit*
1 pcs.
27.3462 €
10 pcs.
24.0618 €
50 pcs.
22.4196 €
150 pcs.
21.4438 €
500 pcs.
20.3371 €
*incl. VAT plus shipping costs
**Subject to prior sale

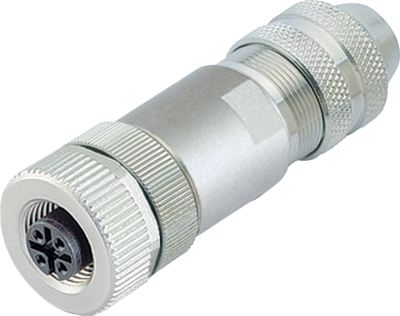

Female cable connector, 99-1430-810-04, Franz Binder
M12-B Female connector, poles 4, 6.0-8.0 mm, shieldable, screw clamp, IP67, UL

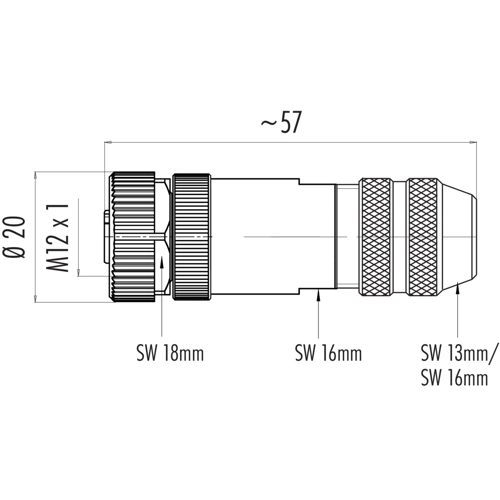

Technical specifications
| Ausführung | Kupplung | |
| Gewindegröße | M12 | |
| Kodierung | B | |
| Kontaktanschluss | Schraubanschluss | |
| Kontaktoberfläche | vergoldet | |
| Montage | Kabelmontage | |
| Orientierung | gerade | |
| Polzahl | 4-polig | |
| Schutzart (IP) | IP67 | |
| Verriegelung | Schraubverriegelung |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
