99 1437 814 05 | binder

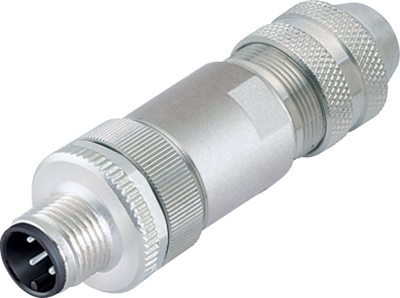

Plug, M12, 5 pole, screw connection, screw locking, straight, 99 1437 814 05
Unit Price (€ / pc.)
23.2407 € *
Available: 29 pcs.
Leadtime: On Request **
Total Price:
23.24 € *
Price list
Quantity
Price per unit*
1 pcs.
23.2407 €
10 pcs.
20.4561 €
50 pcs.
19.0638 €
150 pcs.
18.2189 €
500 pcs.
17.2907 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male cable connector, 99-1437-814-05, Franz Binder
M12-A Male connector, poles 5, 4.0-6.0 mm, shieldable, screw clamp, IP67, UL
Technical specifications
| Version | plug | |
| Thread size | M12 | |
| Coding | A | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
