99 1486 822 08 | binder
Jack, M12, 8 pole, screw connection, screw locking, angled, 99 1486 822 08
Unit Price (€ / pc.)
47.9689 € *
Available: 46 pcs.
Leadtime: On Request **
Total Price:
47.97 € *
Price list
Quantity
Price per unit*
1 pcs.
47.9689 €
5 pcs.
45.0891 €
15 pcs.
43.3636 €
50 pcs.
41.4358 €
150 pcs.
39.7103 €
*incl. VAT plus shipping costs
**Subject to prior sale

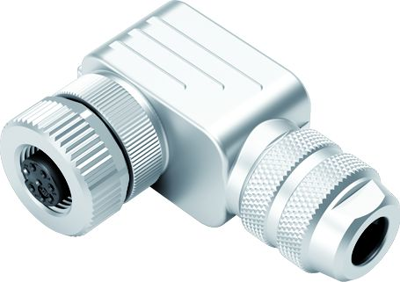

Female angled connector, 99-1486-822-08, Franz Binder
M12-A Female connector, poles 8, 6.0-8.0 mm, shieldable, screw clamp, IP67
Technical specifications
| Version | jack | |
| Thread size | M12 | |
| Coding | A | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
