99 1488 812 08 | binder

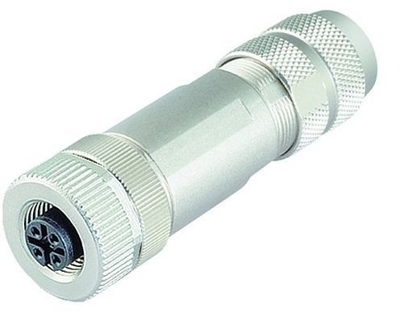

Jack, M12, 8 pole, screw connection, screw locking, straight, 99 1488 812 08
Unit Price (€ / pc.)
31.8801 € *
Available: 10 pcs.
Leadtime: On Request **
Total Price:
31.88 € *
Price list
Quantity
Price per unit*
1 pcs.
31.8801 €
5 pcs.
29.9642 €
15 pcs.
28.8218 €
50 pcs.
27.5485 €
150 pcs.
26.3942 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor-actuator connector, 99-1488-812-08, BINDER
M12-A Female cable connector, Contacts: 8, 8.0-9.0 mm, shieldable, screw clamp, IP67, UL.
Features
- Contact material: CuSn (Bronze)
- Degree of protection: IP67
- Pollution degree: 3
- Overvoltage category: II
Technical specifications
| Version | jack | |
| Thread size | M12 | |
| Coding | A | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | screw locking |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
