99 1525 814 04 | binder
Plug, M12, 4 pole, clamp connection, screw locking, straight, 99 1525 814 04
Unit Price (€ / pc.)
21.0987 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
21.10 € *
Price list
Quantity
Price per unit*
1 pcs.
21.0987 €
10 pcs.
19.8373 €
50 pcs.
18.6473 €
100 pcs.
17.5287 €
*incl. VAT plus shipping costs
**Subject to prior sale

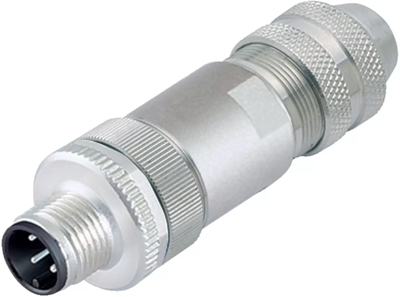

Male cable connector, 99 1525 814 04, binder
M12-A Male cable connector, Contacts: 4, 4.0-6.0 mm, shieldable, wire clamp, IP67.
Technical specifications
| Version | plug | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Coding | A | |
| Contact connection | clamp connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
