99 1533 910 05 | binder
Plug, M12, 5 pole, clamp connection, screw locking, straight, 99 1533 910 05
Unit Price (€ / pc.)
28.1911 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
28.19 € *
Price list
Quantity
Price per unit*
1 pcs.
28.1911 €
10 pcs.
26.5132 €
25 pcs.
24.9186 €
50 pcs.
23.4192 €
*incl. VAT plus shipping costs
**Subject to prior sale

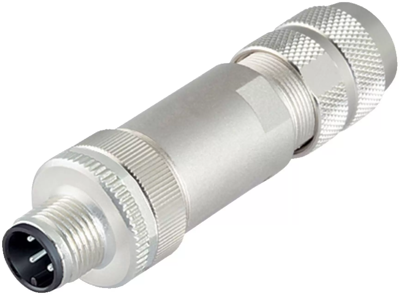

Male cable connector, 99 1533 910 05, binder
M12-B Male cable connector, Contacts: 5, 8.0-9.0 mm, shieldable, wire clamp, IP67.
Technical specifications
| Version | Stecker | |
| Pin number | 5-polig | |
| Thread size | M12 | |
| Coding | B | |
| Type of locking | Schraubverriegelung | |
| Orientation | gerade | |
| Contact connection | Klemmanschluss | |
| contact surface | vergoldet | |
| Additional parts | bestückt | |
| Assembly | Kabelmontage | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
