99 1536 920 05 | binder
Angle coupling, M12, 5 pole, clamp connection, screw locking, angled, 99 1536 920 05
Unit Price (€ / pc.)
32.0467 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
32.05 € *
Price list
Quantity
Price per unit*
1 pcs.
32.0467 €
10 pcs.
30.1189 €
25 pcs.
28.0007 €
50 pcs.
26.0491 €
*incl. VAT plus shipping costs
**Subject to prior sale

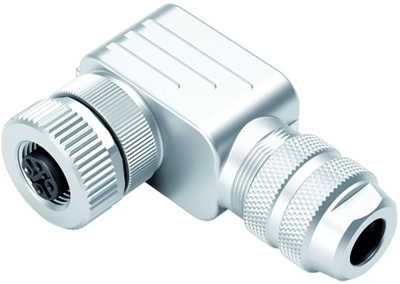

Female angled connector, 99 1536 920 05, binder
M12-B Female angled connector, Contacts: 5, 6.5-8.5 mm, shieldable, wire clamp, IP67.

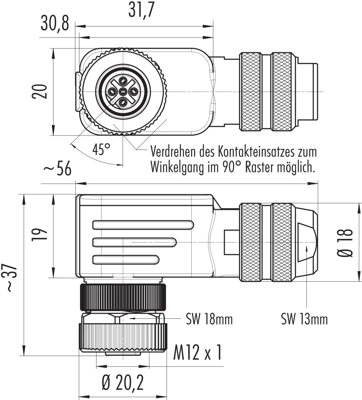

Technical specifications
| Version | angle coupling | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Coding | B | |
| Contact connection | clamp connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
