99 3385 00 03 | binder

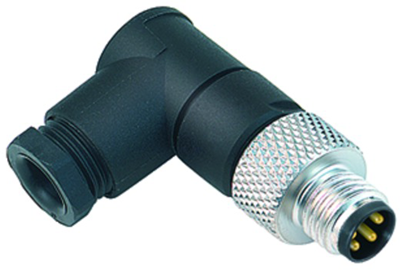

Plug, M8, 3 pole, solder connection, screw locking, angled, 99 3385 00 03
Unit Price (€ / pc.)
11.5073 € *
Available: 51 pcs.
Leadtime: On Request **
Total Price:
11.51 € *
Price list
Quantity
Price per unit*
1 pcs.
11.5073 €
10 pcs.
10.3530 €
50 pcs.
9.1154 €
100 pcs.
7.7350 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector for sensor, M 8, type Binder 768.
With solder terminals; Conductor-cross-sections for: 0.25 mm². Cable outlet: 3.5 to 5.0 mm. Rated voltage: 60 V. Rated current (+40 °C): 4.0 A. Test surge voltage: 910 V. Contact resistance: max. 3.0 mohm. Insulation resistance: 10 Gohm. Housing degree of protection: IP 67. Degree of soiling: 3. Overvoltage category: II. Contacts: copper zinc. Finish: gold-plated. Housing: PBT (UL 94 V-0). Operating temperatures: - 40 to +85 °C.
Male angled connectors with solder terminals.
Technical attributes (type, number of poles): 99-3385-00-03, 3-pole
Technical specifications
| Ausführung | Stecker | |
| Bestückung | bestückt | |
| Gewindegröße | M8 | |
| Kontaktanschluss | Lötanschluss | |
| Kontaktoberfläche | vergoldet | |
| Montage | Kabelmontage | |
| Orientierung | abgewinkelt | |
| Polzahl | 3-polig | |
| Schutzart (IP) | IP67 | |
| Verriegelung | Schraubverriegelung |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
