99 3441 351 05 | binder

Panel plug, M12, 5 pole, SMD, screw locking, straight, 99 3441 351 05

Order No.: 70P1844
EAN: 4099891676797
MPN:
99 3441 351 05
Series: 763
binder

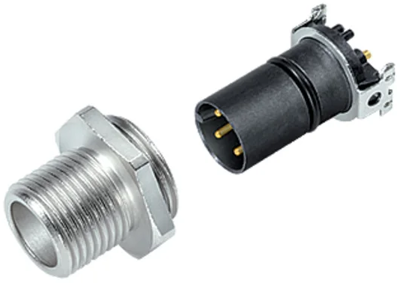

99 3441 351 05 binder Sensor-Actuator Connectors Image 1
99 3441 351 05 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.4006 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
10.40 € *
Price list
Quantity
Price per unit*
1 pcs.
10.4006 €
10 pcs.
9.6747 €
50 pcs.
8.9845 €
100 pcs.
8.1039 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male panel mount connector, 99 3441 351 05, binder

M12-A Male panel mount connector, Contacts: 5, unshielded, SMT, IP67, for SMT.

Technical specifications
Version panel plug
Additional parts equipped
Thread size M12
Coding A
Contact connection SMD
contact surface gold-plated
Assembly panel mounting
Orientation straight
Pin number 5 pole
Degree of protection (IP) IP67
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
