C-184 110H 4,5 | BJZ
Desktop mat, 110 H 04.5, 2.0 x 4.5 mm, light-blue

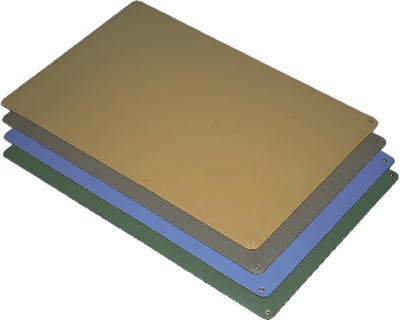

Conductive desktop mats, type BJZ C-184/C-191.
High-grade and two-layer ESD desktop mat, certified by the professional trade association for mechanical and electrical engineering according to DIN EN 100015, VDE 0100 and MBL 8. The finishing layer is made of a material that is widely resistant to solder irons that, for example, does not blacken silver contacts even when exposed over a longer period to this heat. The low impedance of the implemented undercut (max. 10exp4 ohm) ensures a stable leakage resistance; Material: Alfaplan S. Leakage resistance: 10^7 ohm to 10^8 ohm. Snap-on terminals: 2.0 x 4.5 mm or 2.0 x 10.3 mm, depending on the type.
Size 600 x 900 mm, type C-184.
Technical attributes (type, snap-on terminal, color): 110 H 04.5, 2.0 x 4.5 mm, light–blue
| Width | 600 mm | |
| Colour | light blue | |
| Length | 900 mm |
| Country of origin | IT |
| Customs tariff number | 40082190 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
