BK9129B | BK PRECISION

DC Power supply, BK9129B, BK PRECISION

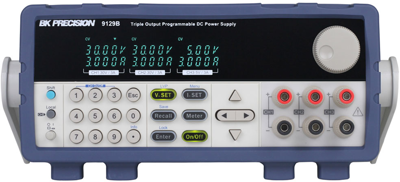

The BK9129B is an economical triple output linear programmable DC power supply featuring isolated outputs that can be adjusted independently or combined in series or parallel to output higher voltage or current. Additionally, this supply can operate in tracking mode with user-configurable ratios between channels.

The front panel keys and rotary knob with convenient cursors let users quickly set voltage and current values. Up to 27 different instrument settings can be saved and recalled. The power-on state of the outputs can also be configured. This power supply is suitable for a wide range of applications including education, service and electronic design.

Features

• Three independent and electrically isolated outputs
• Displays voltage and current settings for all three channels simultaneously
• Low noise, linear regulation
• Tracking mode allows users to set up channels to maintain a programmed ratio
• Fully programmable channels with output On/Off control
• Store and recall up to 27 instrument settings
• Communicate via USB interface supporting SCPI commands using the included USB to TTL serial adapter
• Softpanel for remote control, test sequence generation, and datalogging available
