BK9130C | BK PRECISION
Laboratory power supply, 2 x 0 bis 30 V + 0 bis 5 V, outputs: 3 (3 A/3 A/3 A), 0 to 3 A, 195 W, 110-220 VAC, BK9130C
Order No.: 35K0132
EAN: 817050913033
MPN:
BK9130C
Unit Price (€ / pc.)
1,500.59 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

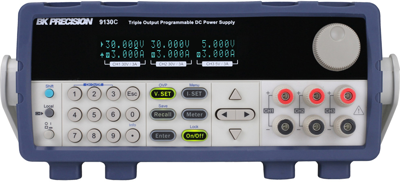

DC Power supply, BK9130C, BK PRECISION
The BK9130C DC power supply features isolated outputs that can be adjusted independently or combined in series or parallel to output higher voltage or current. Additionally, this supply can operate in tracking mode with user-configurable ratios between channels. The front panel keys and rotary knob with convenient cursors let users quickly set voltage and current values. Up to 36 different instrument settings can be saved and recalled. The power-on state of the outputs can also be configured.
This power supply is suitable for a wide range of applications including production testing, telecommunications, RandD, electronic service, and labs.
Features
- Three independent and electrically isolated outputs
- Displays voltage and current settings for all three channels simultaneously
- Low noise, linear regulation
- Tracking mode allows users to set up channels to maintain a programmed ratio
- Fully programmable channels with output On/Off control
- Store and recall up to 36 instrument settings
- Remote sense
- Overvoltage (OVP) and overtemperature (OTP) protection including keylock function
Technical specifications
| Number of outputs | 3 | |
| Output voltage DC | 2 x 0 bis 30 V + 0 bis 5 V | |
| Output current | 3 A | |
| Output current 2 | 3 A | |
| Output current 3 | 3 A | |
| Width | 214.5 mm | |
| Input voltage AC | 110-220 VAC | |
| Height | 88.2 mm | |
| Power | 195 W | |
| Depth | 354.6 mm | |
| Range of Output Currence | 0 bis 3 A |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
