BK9242-GPIB | BK PRECISION

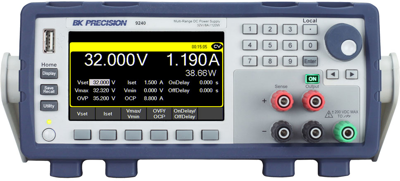

DC Power supply, BK9242-GPIB, BK PRECISION

The BK9242-GPIB sets a new standard for general purpose DC power supplies by including many features and capabilities found in high performance instruments as standard. Multi-range operation provides up to 200 W of clean output power in a compact 2U form factor. This power supply combines an easy-to-use interface with advanced list programming features, battery charge mode, and data logging to serve a wide range of applications including production test, RandD, electronic service, and education.

Features

• Isolated and floating output with front panel remote sense
• Clean output power with less than 1 mVrms of noise
• Advanced list mode programming with internal storage for 10 list mode programs
• Battery charge mode with fail-safe conditions
• Direct data logging to a USB flash drive
• Thermostatically-controlled fan for quiet operation
• Adjustable voltage and current slew rate
• Built-in web server for control of basic power supply settings
• LED test mode for protecting components from inrush currents
• Digital I/O terminal offers external triggering, voltage fault and remote inhibit capabilities
• Overvoltage (OVP), overcurrent (OCP), overtemperature (OTP) protection, and key-lock function
