HPS20K1500-400V | BK PRECISION

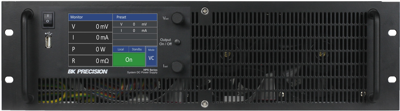

DC Power supply, HPS20K1500-400V, BK PRECISION

The DC Power Supply provides 20 kW of clean output power and high efficiency in a compact 3U form factor. This power supply is well equipped for ATE system applications requiring a wide output voltage up to 1500 V. Multiple power supplies can be combined in parallel to increase the total output power to 160 kW. The 5-inch touchscreen offers intuitive control while displaying both set and measured values including simulated internal resistance. The script function enables the power supply to output a sequence of user-defined voltage/current steps based on a set of written commands.

Additionally, built-in protection features including under voltage protection help prevent damage to the power supply and the device under test. Adjustable voltage/current slew rates and configurable output on/off timer functions enhance user control. LabVIEWTM drivers are provided to simplify instrument control from a PC. Output voltage and current can be logged directly to a USB flash drive.

Features

• Efficiency up to 94%
• Built-in voltage and current measurement
• Galvanically isolated analog control and monitoring interface
• OVP, OCP, OPP, UVP (under voltage protection), and key lock function
• Configurable voltage and current rise time
• Thermostatically-controlled fans help minimize noise
• Simulate the output of photovoltaic arrays
• Remote sense to compensate for voltage drop

Applications

• Testing photovoltaic components including inverters and battery charge controllers
• Relay and component device testing
• Various applications in aerospace, electric vehicle (EV), and green technology industries
• Manufacturing and production test
