MDL4U200B | BK PRECISION

Name: Electronic load, 0,1 bis 80 V, outputs: 1, 4 to 40 A, 200 W, 0 to 80 V, MDL4U200B
Brand: BK PRECISION
SKU: 35K0181
Price: 1,785.00 EUR
Availability: OutOfStock

Electronic load, 0,1 bis 80 V, outputs: 1, 4 to 40 A, 200 W, 0 to 80 V, MDL4U200B

Order No.: 35K0181

EAN: 817050972009

MPN:

MDL4U200B

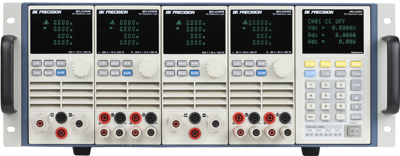

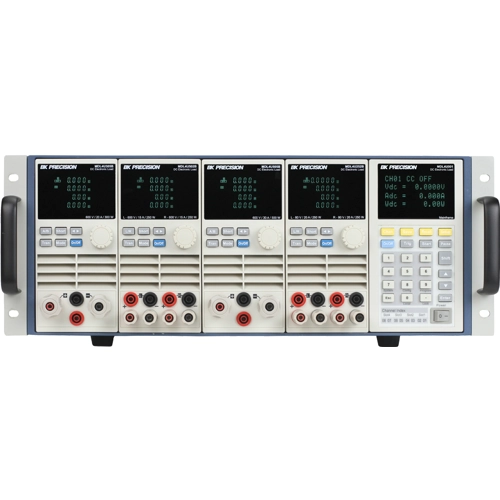

Image may differ

Key Specification:

Output voltage DC 0,1 bis 80 V

Range of Output Currence 4 bis 40 A

Show 5 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1,785.00 € *

Available: 0 pcs.

Leadtime: 5 Weeks **

Total Price:

1,785.00 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Programmable DC Electronic Load, MDL4U200B, BK PRECISION

The MDL4U200B provides users the flexibility to test a wide range of power sources from multi-output DC power supplies to batteries, fuel cells, and photovoltaic arrays. The mainframe consists of a controller and four open slots that can be populated with any combination of modules up to 2400 W (up to 4800 W with mainframe extension). This high-performance electronic load module is capable of operating in constant current (CC), constant voltage (CV), constant resistance (CR), and constant power (CW).

Features

Removable modules for easy system configurability
Support for up to 16 channels using dual channel modules with mainframe extension
Operate identical modules in parallel mode for high current applications
Synchronous load on/off function
Standard LAN, GPIB, USB, and RS232 interfaces with USBTMC/SCPI protocol support
Analog current control and monitoring
Adjustable slew rate in CC mode
4U form factor
Remote sense

Technical specifications

	Number of outputs	1
	Output voltage DC	0,1 bis 80 V
	Width	82 mm
	Input voltage AC	0 bis 80 V
	Height	170.5 mm
	Power	200 W
	Depth	573 mm
	Load resistance	0,05 bis 10 Ω
	Range of Output Currence	4 bis 40 A
