BK1823B | BK PRECISION

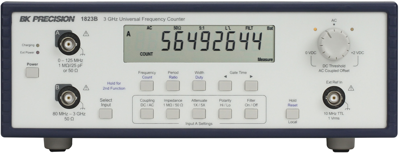

Frequency counter, BK1823B, BK PRECISION

Universal frequency counter is a compact instrument designed for versatile frequency measurements. Equipped with a high-quality temperature-compensated internal frequency reference, this counter provides exceptional stability and accuracy, with a low aging rate of ±1 ppm across the entire temperature range. Multiple input channels allow for precise measurements across a broad spectrum of frequencies.

For frequency, period, and ratio functions the instrument uses a reciprocal counting technique to provide high resolution at all frequencies. 8 significant digits are produced in a 1 s measurement time, 9 digits in 10 s and 10 digits in 100 s. Also includes a USB interface, enabling remote control and device power via a computer. Additional powering options include continuous AC operation with supplied AC charger or for 24 hours on battery power.

Features

• 10-digit display resolution with 0.5” LCD
• ±1 ppm time base stability
• Internal rechargeable batteries allow for up 24 hours of operating life
• Time interval measurement
• Remote control with USB (VCOM) interface

Applications

• Electronic component manufacturing
• Verification and validation of oscillators
