BK393B | BK PRECISION
TRMS digital multimeter BK393B, 10 A(DC), 10 A(AC), 1000 VDC, 1000 VAC, 4 nF to 40 mF, CAT III 1000 V, CAT IV 600 V

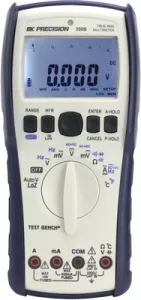

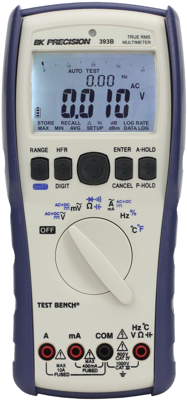

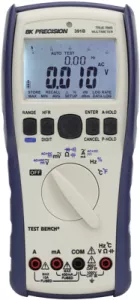

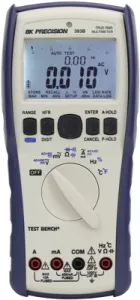

Handheld digital multimeter, BK393B, BK PRECISION
The BK393B True RMS multimeter offers a comprehensive solution for general purpose measurement applications. Bundled with a complete set of accessories, this multimeter provides technicians and engineers with accurate results, data logging capabilities, and measurement features for evaluating a variety of electronics or electrical systems. The easy to read display features an analog style bar graph to help identify measurement trends or fluctuating signals. When working in low-light environments, the auto on/off backlight adjusts for best visibility while maximizing battery life.
Advanced features like data logging records measurements to the meter’s internal memory at a user-specified sampling interval. This product provides convenient measurement monitoring and recording from a PC connected to the meter’s optical isolated USB interface. Additionally, measurements stored in the meter's internal memory can be exported using the provided PC application software.
Features
- Up to 100,000-count, dual display with analog style bar graph
- Temperature measurements using provided K-type thermocouple
- CAT III 1000 V / CAT IV 600 V protection
- Dirt and water-resistant housing with rubberized protective case
- Isolated USB interface with operating software for remote data logging
| Anzeige Digits | 100000 | |
| Ausführung | Handmultimeter | |
| Echteffektivwertmessung (TRMS) möglich | Yes | |
| Kapazitätsbereich | 4 nF bis 40 mF | |
| max. Strommesswert (bei AC) | 10 A | |
| max. Strommesswert (bei DC) | 10 A | |
| max. Widerstandsmessbereich | 40 MΩ | |
| Spannungsmessbereich (AC) | 1000 V | |
| Spannungsmessbereich (DC) | 1000 V | |
| Überspannungskategorie | CAT III 1000 V, CAT IV 600 V |
| Ursprungsland | TW |
| Zolltarifnummer | 90303100 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
