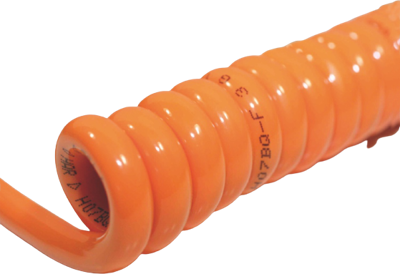

PUR spiral cord H07BQ-F 3 x 2.5 mm², unshielded, orange, 1506110
Unit Price (€ / pc.)
85.7633 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
85.76 € *
Price list
Quantity
Price per unit*
1 pcs.
85.7633 €
5 pcs.
81.0033 €
10 pcs.
76.2314 €
50 pcs.
71.4714 €
100 pcs.
66.7114 €
*incl. VAT plus shipping costs
**Subject to prior sale
Spiral cable, 1506110, BKL Elektronic
Spiral cable, extension length 3200 mm, diameter 9.6 x 12.4 mm, spiral diameter 38-42 mm, cross section 3 x 2.5 mm², polyurethane, orange.
Technical specifications
| Anzahl der Adern | 3 | |
| Ausführung | Spiralleitung | |
| Außendurchmesser | 12.4 mm | |
| Farbe | orange | |
| Halogenfrei | Yes | |
| Leitermaterial | Kupfer | |
| Leiterquerschnitt | 2,5 mm² | |
| Material | PUR | |
| Nennspannung | 500 V | |
| Schirmung | ungeschirmt | |
| Temperaturbereich (bewegt) | -40 °C bis 90 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
