072342/L | BKL Electronic
DC panel-mount socket, 5.6 mm, 2,5 mm
Order No.: 40F1334
EAN: 4099889874433
MPN:
072342/L
Unit Price (€ / pc.)
3.3082 € *
Available: 32 pcs.
Leadtime: 3 Weeks **
Total Price:
3.31 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3082 €
10 pcs.
2.8917 €
100 pcs.
2.5466 €
250 pcs.
2.4514 €
*incl. VAT plus shipping costs
**Subject to prior sale

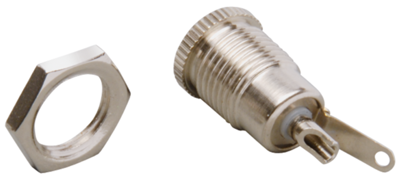

DC Panel jack, 072342/L, BKL Electronic
DC Chassis connector, without switch, 2.5mm/5.6mm, 12VDC/3A, long thread
Technical Data
- Rated current: 3 A
- Connection: Solder connection
- Version: Panel jack
- Colour: metal
Technical specifications
| Connection | solder connection | |
| Version | panel socket | |
| Outer diameter | 5.6 mm | |
| Colour | metal | |
| Inner diameter | 2.5 mm | |
| Cable diameter | 3.2 mm | |
| Hole diameter | 5.6 mm | |
| Assembly | built-in mounting | |
| Rated voltage | 12 V | |
| Rated current | 3 A | |
| Latching switching function | No | |
| Pin diameter | 2.5 mm | |
| With bend protection | No |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
